Request For Information Files

Uploading Files to the RFI

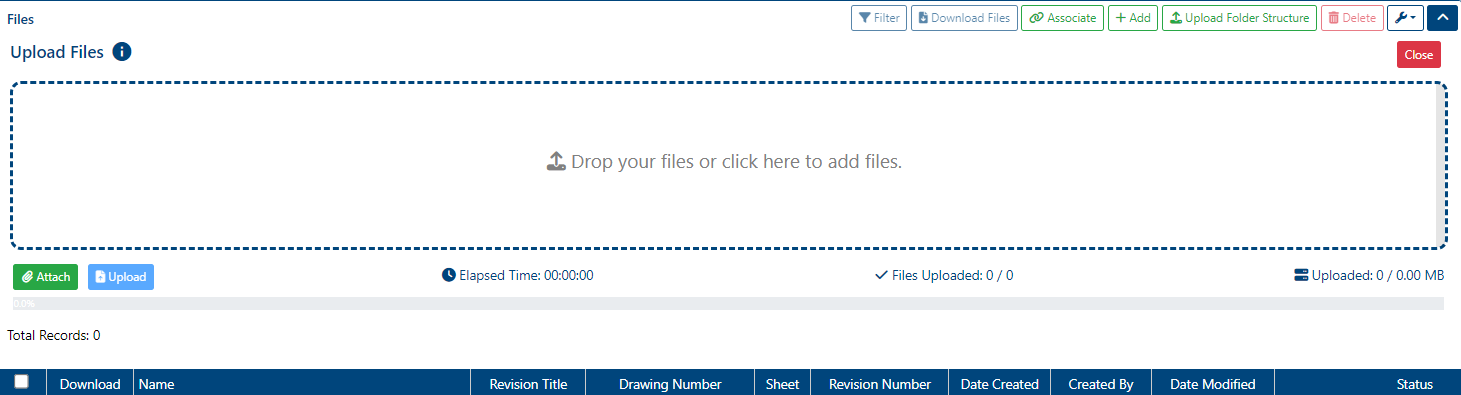

To upload a file and associate it with a RFI:

1. Navigate to the RFI Detail View by clicking the “< List” button.

2. In the Files section, click the “+” button.

3. Drag and drop files into the upload area, or browse and select files from your file explorer.

• Multiple files can be added at once.

Once the file(s) is uploaded, a success alert message will appear on the top right hand corner with a green check mark.

Downloading Files from a RFI

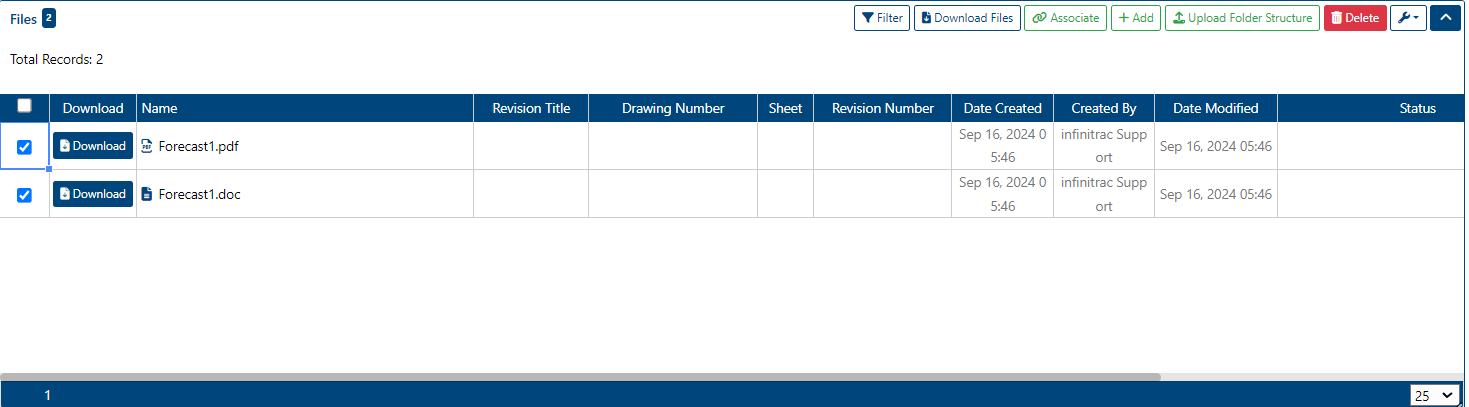

Users can download all files associated with a RFI by clicking the Download Files button.

• All selected files will be downloaded together as a compressed ZIP file.

Deleting Files from the RFI

To delete associated files from the RFI:

1. Click the checkbox next to the file(s) you want to remove.

2. Click the Delete button.

Associating Files to a RFI

Instead of uploading a file directly to a RFI, users can associate an existing file that has already been uploaded to the project's File Management module.

• A single file can be associated with multiple RFI(s).

• Once associated, the file will appear in the Detail View of each linked RFI.

Dynamic Linking

Users can choose to enable or disable dynamic linking when associating a file with a RFI.

• If dynamic linking is ON:
  Any new revision uploaded to the file (via the File Management module’s folder Detail View) will automatically update across all associated RFI.

• If dynamic linking is OFF:
  The file revision shown in the Submittal will remain unchanged, even if a newer revision is uploaded in File Management.

Steps to Associate a File with a RFI

1. Navigate to the Files section in the Submittal(s) Detail View.

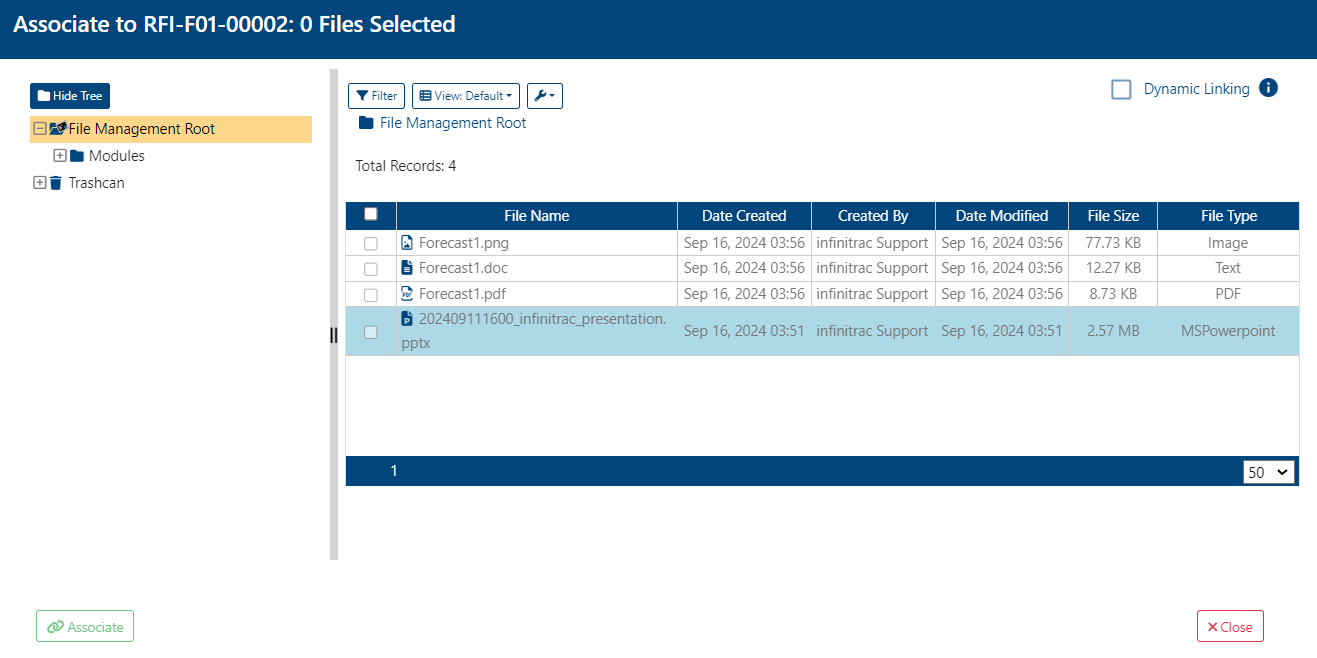

2. Click the Link button (see screenshot below).

3. A new window will open, showing the File Management module’s folder tree.

4. Select the file(s) you want to associate with the RFI.

5. Use the checkbox in the top-right corner to turn Dynamic Linking ON or OFF.

6. Click the Associate button to complete the process.

The selected files will now appear in the RFI's "Files" section.

Uploading Folder Structure

Instead of uploading individual files, users can upload entire folder structures (including subfolders and files) to a RFI.
These structures must be archived/zipped before upload. Once uploaded, infinitrac will unpack the contents into the selected RFI.

Steps to Upload a Folder Structure

1. Navigate to the Files section in the RFI Detail View.

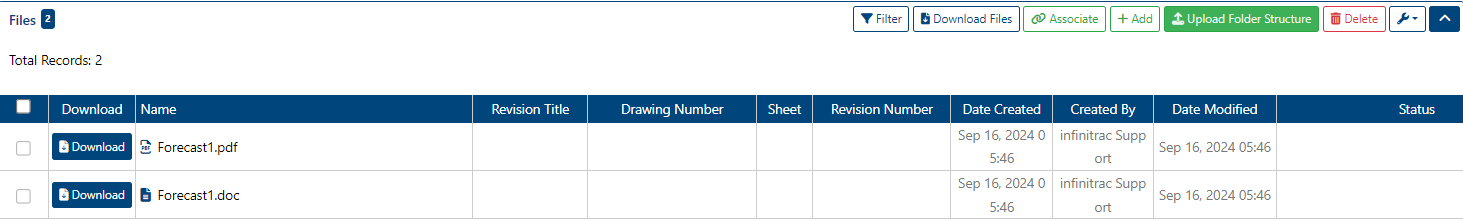

2. Click the “Upload Folder Structure” button (see screenshot below).

3. A new window will open with a dropzone area.

4. Drag and drop your zipped folder into the dropzone, or browse and select it from your file explorer.

5. Click the “Upload” button located in the dropzone to begin the upload.

Uploading a large number of files or folders may take time, depending on the user's internet connection.
Once the upload is complete, the user will receive an email notification with details about the uploaded folder structure and its location within the File Management module.
